WENZEL PMS Multisensor Measuring Machines
Contact
The PMS system delivers exceptional stability and reliability, making it suitable for both precision metrology laboratories and demanding production environments.
Product Introduction

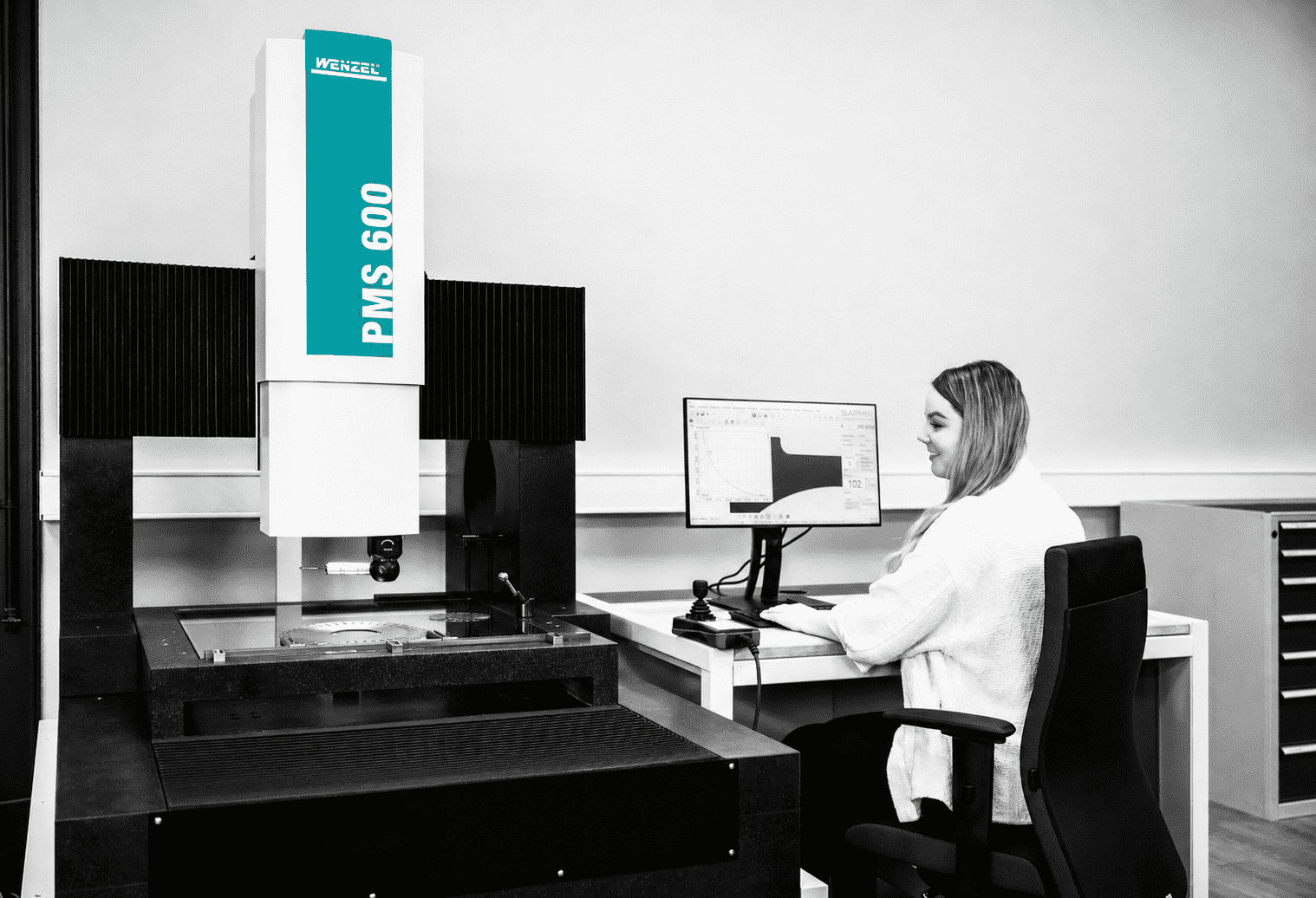

The PMS Bridge-Type 3D Multisensor Measuring Machines represent a strategic technological breakthrough from the WENZEL Group.
This advanced system seamlessly combines non-contact optical measurement and tactile measurement technologies on a robust granite-based mechanical structure. With a flexible modular design and a wide range of sensor options, the WENZEL PMS Multisensor Measuring Machine efficiently handles a broad range of measurement tasks, from extremely small micro-components to large workpieces with dimensions of up to 1,200 mm.
The PMS system delivers exceptional stability and reliability, making it suitable for both precision metrology laboratories and demanding production environments.
Technical Specifications
The PMS Multisensor Measuring Machine series is divided into two main product lines to meet different measurement range and accuracy requirements:
- Standard PMS Series – featuring precision mechanical guideways with dust protection.
- PMS LL Series – featuring ultra-precision air bearings on all axes.
Below is a detailed overview of the technical specifications for both machine series:
| Technical Specification |
Standard PMS Series
(PMS 400 / 500 / 600 / 700)
|
Standard PMS Series
(PMS 500 LL / 700 LL / 900 LL / 1200 LL)
|
|---|---|---|
| X × Y Measuring Range (mm) |
400 x 400 | 500 x 500 | 600 x 600 | 700 x 700
|
500 x 500 | 700 x 700 | 900 x 900 | 1200 x 1200
|
| Z Measuring Range (mm) |
300 (optional upgrade to 400)
|
400 (PMS 500 LL, 700 LL) | 600 (PMS 900 LL, 1200 LL)
|
| Display Resolution (mm) |
0,0001
|
0,0001
|
| Positioning Accuracy (mm) |
0,0005
|
0,0005
|
| Maximum Travel Speed (mm/s) |
100
|
100
|
| Maximum Acceleration (mm/s²) |
400
|
400
|
| Maximum Workpiece Weight | 20 kg on glass table / 200 kg on granite table | 20 kg on glass table / 200 kg on granite table |
Key Features
The WENZEL PMS Multisensor Measuring Machine demonstrates its advanced technological capabilities through a wide range of innovative features integrated into a single measurement system:
- Advanced Multisensor technology
- High-speed CCD camera system with telecentric lens
- 16-segment reflected LED ring illumination
- Highly sensitive tactile probing and scanning systems
- Dedicated non-contact sensors
- Integrated CNC rotary axis with dynamic wobble compensation
- Air bearing technology available on the PMS LL Series
- Intelligent SAPHIR metrology software
Benefits of Using WENZEL PMS Multisensor Measuring Machines
By investing in the WENZEL PMS Multisensor Measuring Machine, manufacturers can achieve significant technical and economic benefits:
Save Time and Reduce Operating Costs
The integration of optical and tactile measurement technologies within a single machine allows manufacturers to measure dimensions, geometry, angles, threads, and contours in one setup.
The continuous and highly automated measurement process significantly improves inspection throughput while reducing overall operating costs.
High Accuracy and Long-Term Reliability
With its rigid monolithic granite base and excellent resistance to deformation and thermal influences, the PMS measuring machine delivers long-term stability and high measurement accuracy.
The system is designed to operate reliably even in demanding production environments with increased vibration levels.
A Future-Proof and Long-Term Investment
The modular machine structure allows companies to upgrade the system with additional sensors or new measurement technologies as requirements evolve.
The PMS system can also be integrated into robotic automation and automated production lines, providing a flexible and future-ready solution for modern manufacturing.
Practical Applications
Thanks to its outstanding versatility and exceptional measurement accuracy, the WENZEL PMS Multisensor Measuring Machine is suitable for a wide range of high-technology industries.
Automotive and E-Mobility Industry
Measurement and inspection of motors, drivetrains, vehicle components, and safety-critical parts.
Aerospace Industry
Precision measurement of complex components, including landing gear systems, turbine blades, and jet engine components.
Medical and Dental Technology
Quality inspection of sensitive medical instruments and artificial implants that require extremely tight tolerances.
Mold Manufacturing and Cutting Tools
Inspection of freeform surfaces, groove depths, cutting angles, and complex profiles of machining tools.
Electrical Engineering and Plastics Technology
Precision measurement of micro-sized components, circuit boards, electrical connectors, plugs, and other high-precision electronic components.
Contact Us for Detailed Consultation and Special Offers
Are you looking for an advanced measurement solution to improve product quality with leading German metrology technology?
Contact Filterfine Vietnam today – an authorized distributor of WENZEL PMS Multisensor Measuring Machines – for professional consultation, optimized measurement solutions, and competitive quotations tailored to your business requirements.
