ProcessGard® DSP Filters

Product Overview

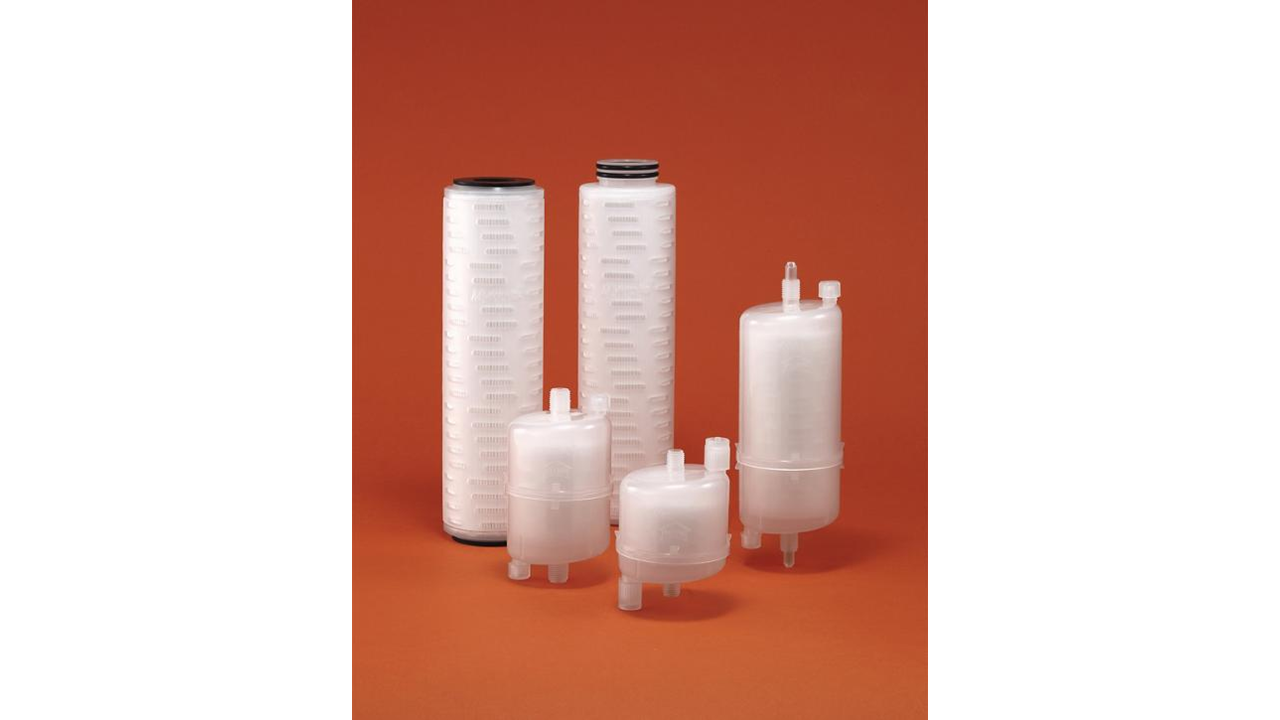

The ProcessGard® DSP Filters are cartridge and capsule filters made from polypropylene, specifically designed for the efficient removal of solid particles from slurry used in substrate polishing processes within the data storage industry. Engineered for high performance and durability, these filters meet the stringent demands of precision manufacturing processes.

Model Specifications Comparison

Product Code Type Length Filtration Rating (µm) O-ring Material Connection
DSP01010E1 Cartridge 10″ 0.1 EPDM Code 0
DSP01010V1 Cartridge 10″ 0.1 FKM Code 0
DSP01E10E1 Cartridge 10″ 0.1 EPDM Code E
DSP02010E1 Cartridge 10″ 0.2 EPDM Code 0
DSP05010E1 Cartridge 10″ 0.5 EPDM Code 0
DSP05020E1 Cartridge 20″ 0.5 EPDM Code 0
DSP10010E1 Cartridge 10″ 1.0 EPDM Code 0
DSP10010V1 Cartridge 10″ 1.0 FKM Code 0
DSP10020E1 Cartridge 20″ 1.0 EPDM Code 0
DSP25010E1 Cartridge 10″ 2.5 EPDM Code 0
DSP25010V1 Cartridge 10″ 2.5 FKM Code 0
DSP25020E1 Cartridge 20″ 2.5 EPDM Code 0
DSP50010E1 Cartridge 10″ 5.0 EPDM Code 0
DSPD001L3F Capsule 5″ 0.1 N/A 3/8″ flare
DSPD001S2C Capsule 2.5″ 0.1 N/A 1/4″ comp seal
DSPD002S2C Capsule 2.5″ 0.2 N/A 1/4″ comp seal
DSPD010S2C Capsule 2.5″ 1.0 N/A 1/4″ comp seal
DSPD025L3F Capsule 5″ 2.5 N/A 3/8″ flare

Operating Parameters

  • Filter Media: Polypropylene

  • Support/Structure Material: Polypropylene

  • O-ring Materials: EPDM, FKM, E-FKM

  • Max Differential Pressure (Forward): 0.4 MPa (4.0 bar) @ 20°C

  • Max Differential Pressure (Reverse): 0.25 MPa (2.5 bar) @ 20°C

  • Max Operating Temperature: 80°C

Key Features

  • High Filtration Efficiency: Effectively removes solid particles from slurry, ensuring clean and smooth disk surfaces.

  • Exceptional Durability: Withstands high pressure and temperature, ideal for demanding manufacturing processes.

  • Versatile Options: Available in a variety of filtration ratings and sizes to suit diverse application requirements.

  • Easy Integration: Compatible with multiple connection types and existing systems.

User Benefits

  • Improved Process Efficiency: Minimizes equipment downtime caused by clogging or frequent filter replacements.

  • Equipment Protection: Prevents damage caused by particulate contamination, extending equipment lifespan.

  • Consistent Product Quality: Ensures magnetic disk surfaces meet the highest quality standards.

Applications

ProcessGard® DSP Filters are widely used in:

  • Data Storage Industry: Slurry filtration in substrate polishing for magnetic disk production.

  • Electronics Industry: Filtration of polishing and grinding solutions in electronic component manufacturing.
